The Watec WAT-WAT-525EX 1/2" 550TVL High Sensitivity & External Synch Monochrome Camera (CCIR) offers high sensitivity and resolution in an ultra compact size camera (4.6 oz/ 2.1" in length). A variety of internal controls are included to ensure image quality in various lighting environments, making it ideal for security and machine vision applications.
Features:
* 1/2" Interline transfer CCD Image sensor
* CCIR Signal System
* High Resolution: 550 TVL
* Manual and electronic image controls
* Super low light sensitivity 0.002 Lux
* Internal sync. / external sync.(C. video, C. sync.)
* Manual gain control
* AGC
* Shutter speed control (10 steps)
* Video/DC iris auto-select
* Flickerless mode
* Back light compensation
* Gamma correction
* Iris level control
* CS lens mount
Specifications:
* Model: WAT-525EX (EIA/CCIR)
* Pick-up element: 1/2inch interline transfer CCD image sensor
* Number of total pixels: 811(H) x 508(V) (EIA), 795(H) x 596(V) (CCIR)
* Number of effective pixels: 768(H) x 494(V) (EIA), 752(H) x 582(V) (CCIR)
* Unit cell size: 8.4um(H) x 9.8um(V) (EIA)
* 8.6um(H) x 8.3um(V) (CCIR)
* Scanning system: 2:1 interlace
* Synchronizing system: Internal/External (C. sync/C. video)
* Sync. signal: 0.2 - 4.0Vp-p
* Video output: 1.0V p-p 75ohms, unbalanced
* Resolution (Horizontal): 570TVL(Center)
* Minimum illumination: 0.002 lx, F1.4
* Back light compensation: AGC: ON/OFF, EI: ON/OFF
* Gamma correction: 0.45/OFF
* AGC: ON: 5-32dB(HI), 5-20dB(LO), OFF: 5-32dB(MANUAL)
* S/N: ratio 50dB (Gain 5dB)
* AE mode: EI(1/60(NTSC) or 1/50(PAL)-100.000 sec.), FL, OFF
* ES: 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000
* Auto iris: Video/DC auto-select
* Power supply: DC+12V±10%
* Current: Max. 150mA
* Operation temperature: -10°C - +40°C (w/o condensation)
* Storage temperature: -30°C - +70°C (w/o condensation)
* Weight: 130g
* Accessories: WPDC12 (jack plug), Hex. Wrench, AIC-G (iris plug)
|
|

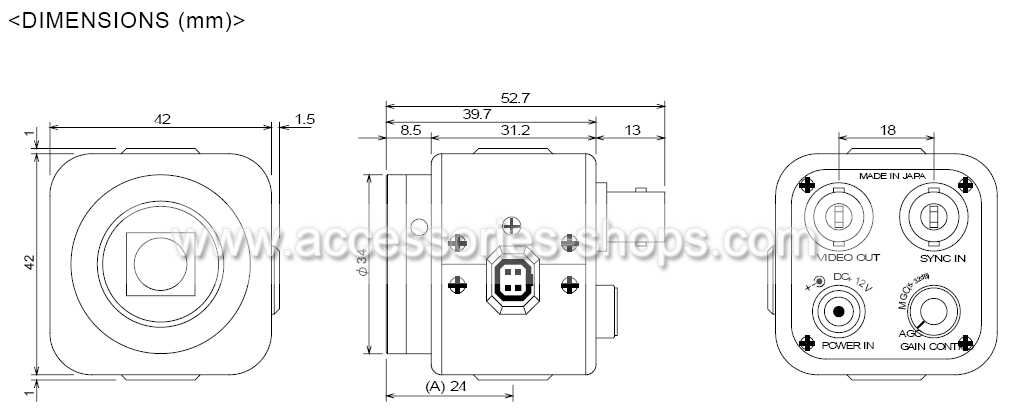

Watec WAT-525EX CCIR 1/2 550TVL High Sensitivity & External Synch Monochrome Camera Images
|
