Watec WAT-600CX Coaxial Cable 1/3 CCD High-Sensitivity Color Camera

Name: Watec WAT600CX Coaxial Cable 13 CCD HighSensitivity Color Camera
Brand: watec
Price: 1 USD

Place of Origin : japan

Brand Name : watec

Model Number : WAT-600CX

Delivery Time : 3days

Payment Terms : T/T or PAYPAL

MOQ : 1pcs

Contact Now

The Watec 600CX High-Sensitivity Color Camera is a one-cable image capture system that supports transmission of video and power via a single cable. Moreover, it features EI (electronic iris) control for FL mode.

Watec WAT-600CX Features:

* Service video-out terminal
* Electronic iris control for Flickerless mode
* AGC (Automatic Gain Control)
* Video level switch (100 IRE/75 IRE)
* Screw lens mount
* White Balance Control
* Electronic Shutter
* Flickerless Mode
* Backlight Compensation
* Gamma Correction
* Coaxial (video / power transmission);
* High resolution, high sensitivity;
* White balance control;
* Electronic shutter,
* Electronic iris;
* AGC;
* BLC,
* Gamma correction.

Watec WAT-600CX Specifications:

Model		WAT-600CX(NTSC)	WAT-600CX(PAL)
Image Sensor		1/3" CCD
total pixels		811(H)*508(V)	795(H)*596(V)
Effective Pixels		768(H)*494(V)	752(H)*582(V)
Pixel Size		6.35um(H)*7.4um(V)	6.5um(H)*6.25um(V)
imaging system		Ye, Cy, Mg, and G complementary color mosaic filters on chip
Synchronization mode		internal synchronization
Scanning system		2:1 interlaced scanning
video output		synthesize,Y/C：1.0 V(P-P),75Ω,imbalance
resolution ratio(H)		More than 540 TVL(Center)
minimum illumination		0.02lx. F1.2(AGC HI)
S/N		More than 50dB(AGC=OFF,γ= 1.0)
AE Mode	Fixed	1/60 - 1/100(FL) sec.	1/50 - 1/120(FL) sec.
		1/1000sec.
	EI	1/60 - 1/100000 sec.(flicker suppress)	1/50 - 1/100000 sec.(flicker suppress)
WB		ATW(color rolling less), PWB
automatic gain control	ON	HI:0-38dB / LO:0-32dB
	OFF	0dB
Gamma Features :		γ≒0.45(ON)/γ= 1.0(OFF)
lens		Video /DC(EIAJ arrangement,Auto-select)
Image level		100IRE(ON)/75IRE(OFF)
BLC		ON/OFF
Power voltage		DC + 15V(WAT-400RX)
White defect correction		Up to 32 pixels
power consumption		3.3W(220mA)
Maximum cable length		3C-2V,150m
Operating Temperature		-10 - +50℃(Frost-free knot)
Storage Temperature		-30 - +70℃(Frost-free knot)
Work /Storage humidity		Lower than 95％RH
Mount		CS (Adjustable back focus)
Weight		About 140G

Watec WAT-600CX Coaxial Cable 1/3 CCD High-Sensitivity Color Camera

Product Tags:

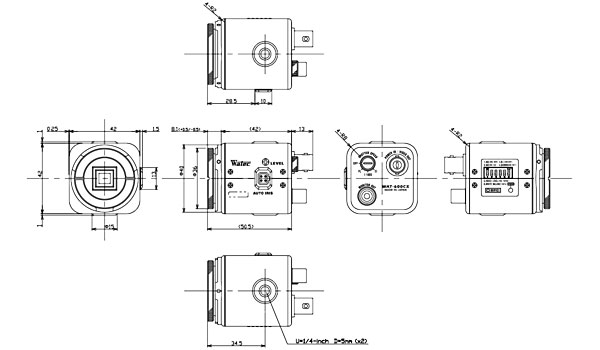

Watec WAT-600CX Coaxial Cable 1/3 CCD High-Sensitivity Color Camera Images
