CNB-VP200L 22X OSD Zoom Auto Focus/Auto Iris CCD Camera

Brand Name : cnb

Delivery Time : 3days

Payment Terms : T/T or PAYPAL

MOQ : 1pcs

Contact Now

CNB-VP200L Highlights:
* 1/4" SONY Super HAD CCD
* Built-in Auto Focus/Auto Iris
* 22x Optical Power Zoom Lens
* 10x Digital Zoom (220x Zoom)
* Digital Slow Shutter
* OSD (On Screen Display)
* RS-232C TTL Interface

CNB-VP200L Specifications:

Model	VN200L	VP200L
Signal System	NTSC : 525 Lines	PAL : 625 lines
Scanning System	2:1 Interlace
Scanning Frequency(H)	15.734 KHz	15.625kHz
Scanning Frequency(V)	59.94 Hz	50Hz
Image Sensor	1/4 inch Interline Transfer SONY Super HAD CCD
Sync. System	Internal/External(Line Lock, VD Lock)
Total Pixels Number	811(H) x 508 (V) 410K	795(H) x 596(V) 470K
Effective Pixels Number	768(H) x 494 (V) 380K	752(H) x 582(V) 440K
Horizontal Resolution	Horizontal : 480 TV Lines
Video Output Level	1.0 Vp-p (75 Ohms, composite)
S/N Ratio	More Than 48dB (AGC Off)
Digital Zoom Ratio	10x (Total Zoom Ratio : 220x), 2x ~ 10x Variable
Lens	22x Optical Zoom (F1.6, f=3.9~85.8mm) Video AF
Angle of View	Horizontal : 47 degree (wide) / 3 degree (tele)
Min. Illumination	0.001 Lux (DSS)
Day & Night System	Digtial Slow Shutter (2FLD~128FLD)
Zoom/Focus Preset	64 Mode Set (Store Internal EEPROOM)
OSD Menu	On / Off
Color / BW	On / Off
Sharpness Control	Manual (Up ~ Down)
Focus Mode	Auto / Manual
Brightness Control	Manual (Up ~ Down)
Input/Output Connector	9 Pin Flat Cable
Electronic Shutter Speed	1/60 ~ 1/10,000sec (8 steps)	1/50 ~ 1/10,000sec (8 steps)
Power Voltage	DC 9V ~ 15V (Recommendation DC12±0.5V)
Power Consumption	Max. 4.2W / 350mA
Dimensions	49.2(W) x 53.2(H) x 86.6(D) mm
Weight (Net)	Approx. 205g

Product Tags:

CNB camera

ccd camera

sony camera

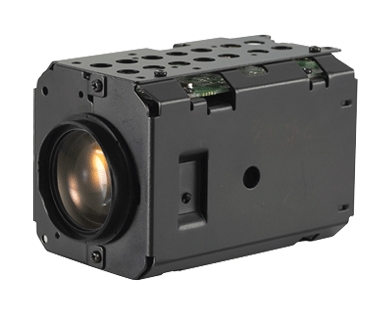

CNB-VP200L 22X OSD Zoom Auto Focus/Auto Iris CCD Camera Images
